Triangle V Belt Mechanical Transmission For Oil Extraction
Description:
Ordinary Belt Type: A, B, C Narrow v belt type: Spa, SPB, SPC, SPZ and a belt with teeth: XPA, XPB, XPZ, XPC this belt with teeth is usually used in the air compressor industry, high speed transmission ratio heat dissipation, mainly used by imported brands, German opet and American Gates. Common V-BELT AND NARROW V-BELT DIFFERENCE: 1. General Belt with low surface drive, Line speed can not exceed 30 m / S, * * Transmission Ratio can only reach 10:1; 2. Cross-sectional area is not the same, driven power is not the same, narrow v-belt driven power is greater than the general belt. 3. The narrow v-belt has larger surface area and better heat dissipation effect. 4. When the narrow v-belt is in contact with the pulley, the deformation of the Cross section is smaller, and the contact between the edge of the belt and the groove of the pulley is better. Matching cone set pulley imported belt brands are: Samsung, Japan Bandong, Germany opet, the United States Gates, Guarantee that the factory channels to get lower discounts.
Model:
| Type | Top width(mm) | Belt Thickness (mm) | Angle (°) | Production scope (lnch) |
| O(M) | 10 | 6 | 40° | 20-120 |
| A | 13 | 8 | 40° | 25-150 |
| B | 17 | 11 | 40° | 28-400 |
| C | 22 | 14 | 40° | 48-500 |
| D | 32 | 19 | 40° | 99-600 |
| E | 38 | 23 | 40° | 120-600 |
| 3V | 9.5 | 8 | 40° | 25-150 |
| 5V | 16 | 13.5 | 40° | 28-400 |
| 8V | 25.5 | 23 | 40° | 48-500 |
| SPA | 12.7 | 10 | 40° | 25-150 |
| SPB | 16.3 | 13 | 40° | 28-400 |
| SPC | 22 | 18 | 40° | 48-500 |
Can be customized according to customer requirements
|
Our product advantage:
1, complete and numerous equipment make us have a strong production capacity ,which make delivery time short, guarantee timely delivery ;
2, strict raw materials ,semi-finished products and finished products inspection system ensure the product quality.
3, supplying for more than 80% domestic manufacturers for a long time. So the product quality and stability is recognised by the market;
4, we have their own research and development team, make us design new products for you be possible.
5, with the production increase year by year, the cost will be much lower.

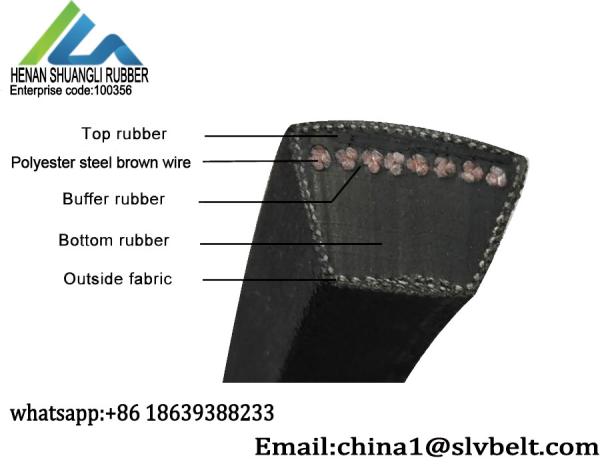

Product Image:
About us:
Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System, environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
The company’s products are sold by agents all over the country with the advantages of super high quality and complete specifications. The products are sold in Henan, Hebei, Shandong, Shanxi, Hunan, Hubei, Guangdong, Guangxi Jiangxi, Hainan, Ningxia, Heilongjiang, Jilin, Liaoning, Inner Mongolia, Xinjiang, Lhasa and all major provinces, cities and counties, and autonomous regions across the country, they are also exported to Laos, Myanmar, Pakistan, Kyrgyzstan and other countries, and have been trusted and praised by the majority of sellers and users.
